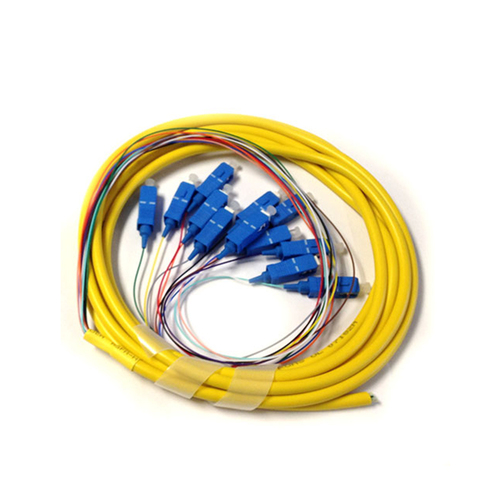

Lc 12 Mini Breakout Fiber Optic Pigtail Single Mode / Multimode

  • 1
  • 2

Brand Name : XDK

Model Number : 12 Fiber Mini Breakout Pigtail

Certification : CPR, DCR,ECR,FCR,ROHS,ISO9001,UL

Place of Origin : China/ Vietnam

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5million termination per month

Delivery Time : 7 Working day

Packaging Details : OEM PE bag, carton box, wooden roll

name : 12 Fiber Mini Breakout Pigtail

Application : FTTH FTTB FTTX Network, CATV, Patch Cords, cabling system, network

Length : Customized

Connector : FC, SC, SC/APC (LC, LC, FC for choice)

Jacket material : OFNP, PVC, PVC.LSZH, LSZH

Cable diameter : 0.9/2.0/3.0mm

Contact Now

Fiber optic pigtail 12 Fiber Mini Breakout Pigtail multimode / singlemode

Product Description

The 12 fiber pigtail comes pre-terminated with LC, LC/APC, SC, SC/APC, ST, and FC/APC connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1, OM2/OM3/OM4, and OS2 fiber specifications. 12 Fiber Optic pigtails come in lengths of 1, 2, or 3 meters with additional longer with available upon special request.

Features

1. Compliant with Telcordia,GR-326-CORE, TIA/EIA and IEC
2. Low Insertion Loss & Back Reflection
3. Environmentally Stable
4. 2,4,6,8, 12 and 24 Channels Avaliable
5. Save Duct Space,Cost and Installation time
6. Easy Push/Pull Operation
7 Breakout Cable/Bundle Distribution Cable/ Ribbon Cable/Outdoor Waterproof cable optional

Specification

Item Single Mode Multimode
Fiber Cable Type G652/G655/G657 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1

Applications

1. Termination of optical networks via fusion or mechanical splicing

2. Testing of optical devices

3. Cable acceptance testing

Lc 12 Mini Breakout Fiber Optic Pigtail Single Mode / Multimode
